LM4580 DUAL LOW NOISE OPERATIONAL AMPLIFIERS
1、General Description The LM4580 is a monolithic dual low noise operational amplifier. It is specifically designed for audio systems to improve tone control; it can also be used in preamplifier,industrial measurement tools and applicationswhere gain and phase matched channels are mandatory. The IC features internal frequency compensation, lownoise, low distortion, high gain and high bandwidth.The LM4580 can operate under dual power supply voltage up to ±18V or single power supply up to 36V.The LM4580 is available in DIP-8, SOIC-8 and TSSOP-8 packages. | 2、Features
3、Applications
|

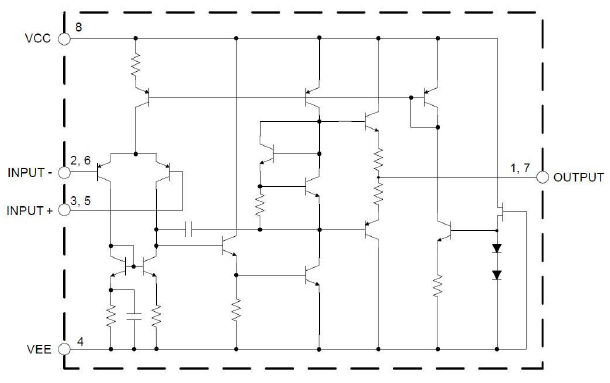

| 4、Functional Block Diagram | 5、Pin Configuration |
 |  |
結果機型 | 供貨渠道管理狀況 | 渠道數 | 的任務交流電壓范圍 (V) | 收獲下行帶寬積 | 靜態變量電壓/安全通道 | 和平線電壓 （mV） | 穩定平衡電壓電流溫漂 （μV/°C） | 導出偏置感應電流 （nA） | 封口 |
| LM4580 | 量產 | 2 | 4.0-36 | 15MHz | 3.5mA | 3 | 5 | 500 | SOP8/DIP8/TSSOP8 |
